CNC Turnmill Center Machine

• Automatic
• Yes

• Axial Choice
• 2 Axis (X, Z) with Live Tool (C axis)

• Bar Feeder
• Other, Optional

• Capacity
• 200 mm Turning Diameter

• Color
• Other, Grey/Black

• Computerized
• Yes

• Dimension (L*W*H)
• 3000 x 1600 x 2000 mm

• Feature
• Other, Live Tooling, Milling and Turning Functions, High Precision

• General Use
• CNC Turning and Milling Operations

• Material
• Other, Cast Iron/Stainless Steel Components

• Motor
• Other, Spindle Motor: 15/18.5 kW

• PLC Control
• Other, PLC & CNC Controller

• Power Consumption
• 12 kW

• Power Source
• Electric

• Product Type
• Turnmill Center

• Rigidity
• Other, High Rigidity Structure

• Spindle Speed
• 3500 RPM

• Table Size
• Not Applicable (Rotary Tool Turret)

• Type
• Other, CNC Turnmill Lathe

• Voltage
• 380V/415V

• Weight (kg)
• 5000 kg

• Automatic
• Yes

• Axial Choice
• X/Z Axes

• Bar Feeder
• Other, Optional

• Capacity
• Max. Turning Dia. 260 mm

• Color
• Other, Gray/Black

• Computerized
• Yes

• Dimension (L*W*H)
• 2465 x 1770 x 1920 mm

• Feature
• Other, Turnmill, CNC Control, Servo Turret

• General Use
• Turning and Milling Operations

• Material
• Other, Hardened Steel, Alloys

• Motor
• Other, Spindle and Servo Motors

• PLC Control
• Yes

• Power Consumption
• 7.5 / 11 kW

• Power Source
• Electric

• Product Type

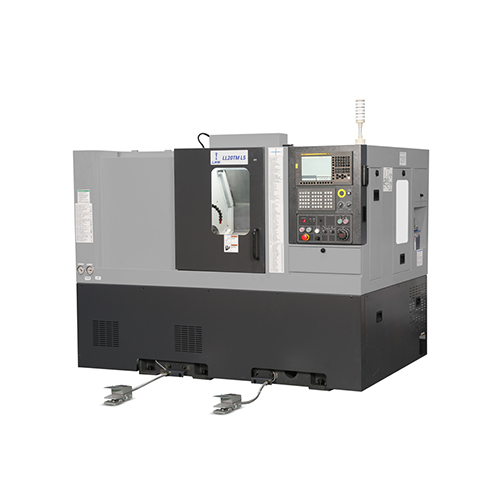

• CNC LL20TM L5 Turnmill Center Machine

• Rigidity
• Other, High Precision Build

• Spindle Speed
• Up to 4000 rpm

• Type
• Other, Turnmill CNC Lathe

• Voltage
• Standard Industrial Voltage

• Weight (kg)
• 4000 kg

• Automatic
• Yes

• Axial Choice
• 2 Axis

• Bar Feeder
• Other, Optional

• Capacity
• Maximum Turning Diameter 260 mm

• Color
• Other, Grey/Black

• Computerized
• Yes

• Dimension (L*W*H)
• 2920 x 1770 x 1920 mm

• Feature
• Other, High Precision, Stable Performance

• General Use
• Metal Turning and Milling

• Material
• Other, Cast Iron, Steel

• Motor
• Other, AC Servo

• PLC Control
• Yes

• Power Consumption
• 7.5 / 11 kW

• Power Source
• Electric

• Product Type
• CNC Turnmill Center

• Rigidity
• High

• Spindle Speed
• 4000 rpm

• Type
• Horizontal

• Voltage
• 220/380 V

• Weight (kg)
• 4200

• Automatic
• Yes

• Axial Choice
• X/Z Axis

• Bar Feeder
• Other, Optional

• Capacity
• Swing over bed: 510 mm

• Color
• Other, Grey/Black

• Computerized
• Yes

• Dimension (L*W*H)
• 3270 x 1945 x 1920 mm

• Feature
• Other, Servo Turret Indexing, Turn-mill operations

• General Use
• Metal Turning and Milling

• Material
• Other, Mild Steel/ Cast Iron

• Motor
• Other, Spindle Motor, 7.5 / 11 kW

• PLC Control
• Other, Available

• Power Consumption
• 7.5 / 11 kW

• Power Source
• Electric

• Product Type
• CNC Turnmill Center Machine

• Rigidity
• High

• Spindle Speed
• Max 4000 rpm

• Type
• Other, CNC Lathe-Turnmill

• Voltage
• Customizable (Standard: 415V)

• Weight (kg)
• 4200 kg

• Automatic
• Yes

• Axial Choice
• X, Z axes

• Bar Feeder
• Other, Optional

• Capacity
• Max turning dia 320 mm

• Color
• Other, Grey-Black

• Computerized
• Yes

• Dimension (L*W*H)
• 2920 x 1820 x 2020 mm

• Feature
• Other, Fanuc Controller, Servo Turret

• General Use
• Industrial machining, turning, milling

• Material
• Other, Cast iron body

• Motor
• Other, Spindle motor 11/15 kW

• PLC Control
• Other, Included (Fanuc)

• Power Consumption
• 11 / 15 kW (Continuous / 15 Min)

• Power Source
• Electric

• Product Type
• CNC LL25TM L7 Turnmill Center Machine

• Rigidity
• Other, High rigidity construction

• Spindle Speed
• 4000 rpm

• Type
• Other, CNC Turnmill Center

• Voltage
• 230/415 V (typical for CNC)

• Weight (kg)
• 4500 kg

• Automatic
• Yes

• Axial Choice
• X / Z Axes

• Bar Feeder
• Other, Optional

• Capacity
• Swing over bed 680 mm

• Color
• Other, Grey / Black

• Computerized
• Yes

• Dimension (L*W*H)
• 3015 x 1615 x 2240 mm

• Feature
• Other, CNC System Fanuc, Servo Turret

• General Use
• Industrial Turning & Milling

• Material
• Other, Cast iron, steel

• Motor
• Other, Servo type spindle

• PLC Control
• Other, Yes (Fanuc)

• Power Consumption
• 18.5 / 15 kW

• Power Source
• Electric

• Product Type
• CNC Turnmill Center Machine

• Rigidity
• High

• Spindle Speed
• 3500 rpm

• Table Size
• 304 mm Chuck

• Type
• Other, Automatic Turnmill

• Voltage
• Standard industrial

• Weight (kg)
• 5200 kg

• Automatic
• Yes

• Axial Choice
• X, Z Axes

• Capacity
• Max Turning Dia 400 mm

• Color
• Other, Grey/Black

• Computerized
• Yes

• Dimension (L*W*H)
• 3015 x 1615 x 2240 mm

• Feature
• Other, CNC, Turnmill, Servo Turret

• General Use
• CNC Machining, Metal Turning

• Material
• Other, Metal Body

• Motor
• Other, Spindle Motor 18.5/15 kW

• PLC Control
• Other, Fanuc CNC System

• Power Consumption
• 18.5 kW (Continuous)

• Power Source
• Electric

• Product Type
• Turnmill Center Machine

• Rigidity
• Other, High Rigidity Structure

• Spindle Speed
• 3500 rpm

• Type
• Other, CNC Turnmill Center

• Weight (kg)
• 5200 kg

• Automatic
• Yes

• Axial Choice
• X/Z Axes

• Capacity
• High Turning/ Milling

• Color
• Other, Grey/Black

• Computerized
• Yes

• Dimension (L*W*H)
• 3230 x 1900 x 2085 mm

• Feature
• Other, Turnmill Capability, Servo Turret

• General Use
• Industrial/Heavy Duty Turning

• Material
• Other, Metal Body

• Motor
• Other, Spindle Motor

• PLC Control
• Other, Fanuc

• Power Consumption
• 15 / 18.5 kW

• Power Source
• Electric

• Product Type
• CNC Turnmill Center Machine

• Rigidity
• High

• Spindle Speed
• 3000 rpm

• Type
• Other, CNC Lathe Machine

• Weight (kg)
• 6000 kg

• Automatic
• Other, Fully automatic

• Axial Choice
• X, Y, Z, W axes

• Bar Feeder
• Other, Optional

• Capacity
• Max 470 mm turning length

• Color
• Other, Grey

• Computerized
• Yes

• Dimension (L*W*H)
• 3242 x 2085 x 2010 mm

• Feature
• Other, Turnmill, Live tool turret

• General Use
• Industrial machining

• Material
• Other, Cast Iron, Steel

• Motor
• Other, 11 / 7.5 kW spindle

• PLC Control
• Other, Available

• Power Consumption
• Depends on operation

• Power Source
• Electric

• Product Type
• CNC Turnmill Center

• Rigidity
• Other, High rigidity

• Spindle Speed
• 4000 rpm main, 5000 rpm sub

• Type
• Other, Horizontal CNC

• Voltage
• 380~415 V (Approx)

• Weight (kg)
• 4800 kg

• Automatic
• Yes

• Axial Choice
• X, Y, Z axes

• Bar Feeder
• Other, Optional

• Capacity
• Maximum Turning Diameter 300 mm, Maximum Turning Length 414 mm

• Color
• Other, Gray/Black

• Computerized
• Yes

• Dimension (L*W*H)
• 2940 x 1788 x 2005 mm

• Feature
• Other, Live Tool Turret, Servo Turret Indexing

• General Use
• Industrial Metal Cutting

• Material
• Other, Alloy/Industrial Metal

• Motor
• Other, Spindle Motor, Driven Motor

• PLC Control
• Other, Siemens CNC System

• Power Consumption
• 9 / 13.5 kW

• Power Source
• Electric

• Product Type
• CNC Turnmill Center Machine

• Rigidity
• High

• Spindle Speed
• 4000 rpm

• Type
• Other, Automatic CNC Lathe

• Voltage
• Standard industrial

• Weight (kg)
• 4500

• Automatic
• Yes

• Axial Choice
• X, Y, Z Axes

• Bar Feeder
• Other, Optional

• Capacity
• Swing 800 mm, Chuck 533 mm, Max Turn Dia 520 mm, Max Length 1700 mm

• Color
• Other, Grey/Black

• Computerized
• Yes

• Dimension (L*W*H)
• Data Not Specified

• Feature
• Other, Turn-mill capability, high precision

• General Use
• Industrial Turning and Milling

• Material
• Other, Metal processing

• Motor
• Other, Spindle/Rotary Tool Motor

• PLC Control
• Yes

• Power Consumption
• 18.5/22 kW

• Power Source
• Electric

• Product Type
• CNC Turnmill Center

• Rigidity
• Other, High Rigidity

• Spindle Speed
• 1250 rpm

• Type
• Other, Turnmill Lathe

• Voltage
• 415 V

• Weight (kg)
• Data Not Specified

• Automatic
• Yes

• Axial Choice
• X, Z axes

• Bar Feeder
• Other, Optional

• Capacity
• Maximum Turning Diameter: 570 mm, Maximum Turning Length: 1400 mm

• Color
• Other, Grey/Black

• Computerized
• Yes

• Dimension (L*W*H)
• 4950 x 2475 x 2500 mm

• Feature
• Other, Live Tool Turret, Servo Turret Indexing

• General Use
• Heavy-duty turning & milling

• Material
• Other, Steel, metal, alloys

• Motor
• Other, Spindle: 18.5/22 kW, Driven: 4.5 kW

• PLC Control
• Other, Fanuc CNC System

• Power Consumption
• 18.5/22 kW

• Power Source
• Electric

• Product Type
• CNC Turnmill Center Machine

• Rigidity
• High

• Spindle Speed
• 1900 rpm (max)

• Type
• Other, Automatic CNC

• Voltage
• 415 V

• Weight (kg)
• 11000 kg

• Automatic
• Yes

• Axial Choice
• X,Z Axes

• Bar Feeder
• Other, Optional

• Capacity
• Swing over Bed 745 mm, Max Turning Dia 550 mm

• Color
• Other, Black/Grey

• Computerized
• Yes

• Feature
• Other, High Precision, Efficient Indexing

• General Use
• Turning, Milling, Drilling, Boring Operations

• Material
• Other, Steel Body

• Motor
• Other, 18.5/22 kW Spindle, 6.4 kW Rotary Tool

• PLC Control
• Other, Fanuc

• Power Consumption
• 18.5/22 kW

• Power Source
• Electric

• Product Type
• CNC Turnmill Center Machine

• Rigidity
• High

• Spindle Speed
• 1250 rpm

• Type
• Other, Horizontal CNC Turnmill

• Voltage
• Three Phase

• Automatic
• Other, Fully Automatic

• Axial Choice
• X, Z Axes

• Bar Feeder
• Other, Optional

• Capacity
• Maximum Turning Dia 400 mm, Maximum Turning Length 630 mm

• Color
• Other, Grey / Black

• Computerized
• Yes

• Dimension (L*W*H)
• 3015 x 1615 x 2240 mm

• Feature
• Other, Live Tool Turret, C/Y Axis, High-Speed, Precision

• General Use
• Precision Metal Turning & Milling

• Material
• Other, Alloy Steel, Hardened Parts

• Motor
• Other, Spindle 18.5/15kW, Driven 4.5kW

• PLC Control
• Other, Fanuc Controller

• Power Consumption
• 18.5 / 15 kW (Spindle), 4.5 kW (Driven Motor)

• Power Source
• Electric

• Product Type
• CNC Turnmill Center Machine

• Rigidity
• Other, High Rigidity Structure

• Spindle Speed
• 3500 rpm

• Table Size
• N/A (Turret-based)

• Type
• Other, Horizontal CNC Turnmill

• Voltage
• Electrical, as per factory standards

• Weight (kg)
• 5200 kg

• Automatic
• Yes

• Axial Choice
• X, Z axis

• Capacity
• Max turning dia 394 mm

• Color
• Gray

• Computerized
• Yes

• Dimension (L*W*H)
• 1830 x 2870 x 2945 mm

• Feature
• Other, Servo turret indexing

• General Use
• Heavy duty turning/milling

• Material
• Other, Suitable for metal workpieces

• Motor
• Other, Main spindle motor

• PLC Control
• Other, Fanuc System

• Power Consumption
• 15 / 18.5 kW

• Power Source
• Electric

• Product Type
• CNC LTV 30M Turnmill Center Machine

• Rigidity
• Other, High rigidity structure

• Spindle Speed
• 2500 rpm

• Type
• Other, CNC Turnmill Center

• Weight (kg)
• 6600

• Automatic
• Yes

• Axial Choice
• X, Z axes

• Capacity
• Maximum Turning Diameter 700 mm

• Color
• Other, Grey

• Computerized
• Yes

• Dimension (L*W*H)
• 2342 x 2600 x 4555 mm

• Feature
• Other, Turn-mill function, high speed, programmable

• General Use
• Heavy duty metal turning & milling

• Material
• Other, Heavy duty steel body

• Motor
• Other, Spindle Motor

• PLC Control
• Other, Fanuc

• Power Consumption
• 18.5 / 22 kW

• Power Source
• Electric

• Product Type
• CNC Turnmill Center Machine

• Rigidity
• Other, High rigidity

• Spindle Speed
• 1800 rpm

• Type
• Other, Automatic CNC Turnmill

• Weight (kg)
• 12000 kg
